Chromaster® 5610 MS Detector

High Performance Liquid Chromatographs (HPLC)

Easy Acquisition of Mass Information!

The Hitachi Chromaster 5610 mass detector is designed for HPLC applications, that may not require a large-scale mass spectrometer.

◙ Improved chromatogram reliability
◙ Easy acquisition of mass information
◙ No need for special installation environment
◙ Easily maintained​

Request Quote
  • Features
  • Resources

| Compact tabletop design - Ideal footprint for any HPLC laboratory

◙ With its space-saving compact design, its footprint is equivalent to that of a HPLC system.
◙ The N2 gas usage has been reduced (maximum flow rate of 3.4 L/min).
◙ The system can be operated with a N2 gas cylinder.
◙ Can be connected to an existing HPLC (inquire about the compatibility).

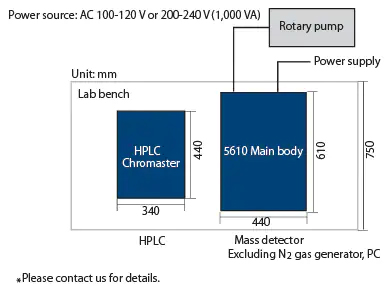

Site Requirements

| Usability Equivalent to Optical HPLC Detectors

Instrument and method settings

Ease of use is achieved by eliminating complicated MS settings for those new to mass analysis. The Chromaster 5610 is equipped with an auto-tuning function to provide optimized instrument conditions to help HPLC users who are unfamiliar with the operation of mass spectrometers.

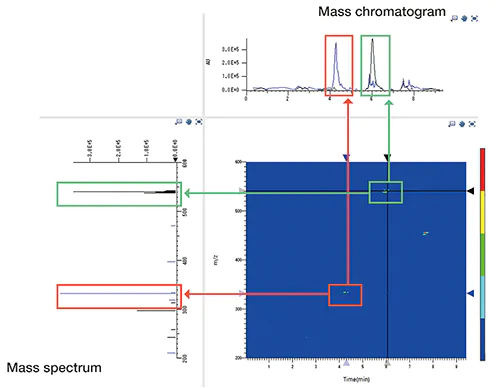

Measurement Results

Functions such as the contour display allow the verification of an overall chromatographic elution pattern. The user interface resembles that of a PDA detector so operations are as simple as using HPLC detectors.

Measurement result by scanning mode

| Maintainability Equivalent to Optical HPLC Detectors

Maintenance

When reduced sensitivity or contamination is suspected, the atmospheric-pressure ion filter can be removed for easy cleaning. As the vacuum pump can keep running while the filter is being cleaned, the measurements can be started immediately after the maintenance.

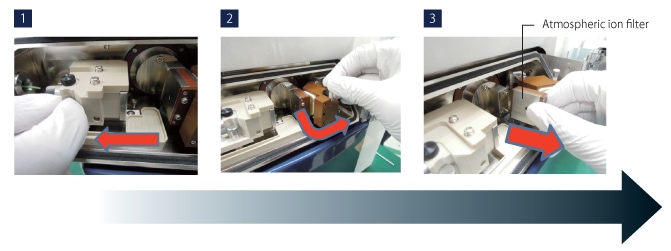

Procedure for removal of the atmospheric filter

The atmospheric ion filter can be removed in 3 steps, and it can be reused after ultrasonic cleaning.
